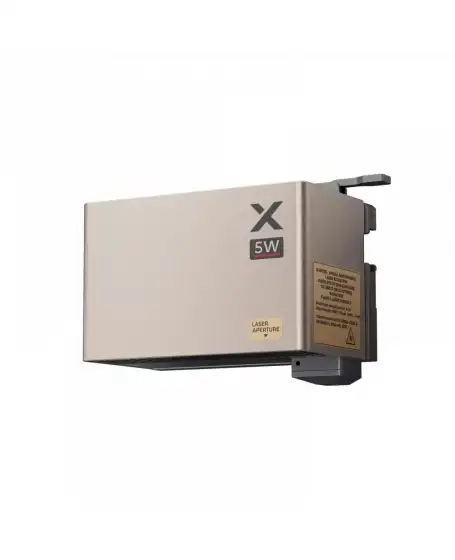

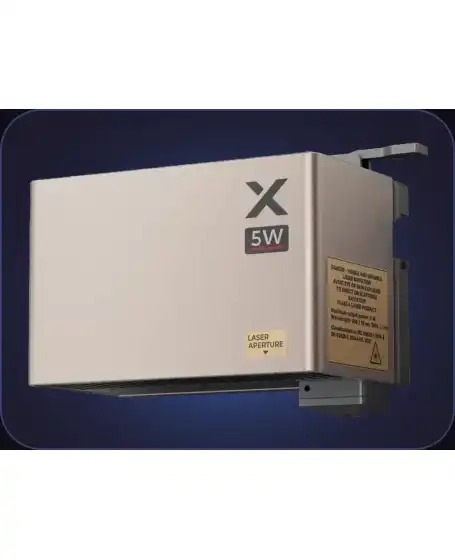

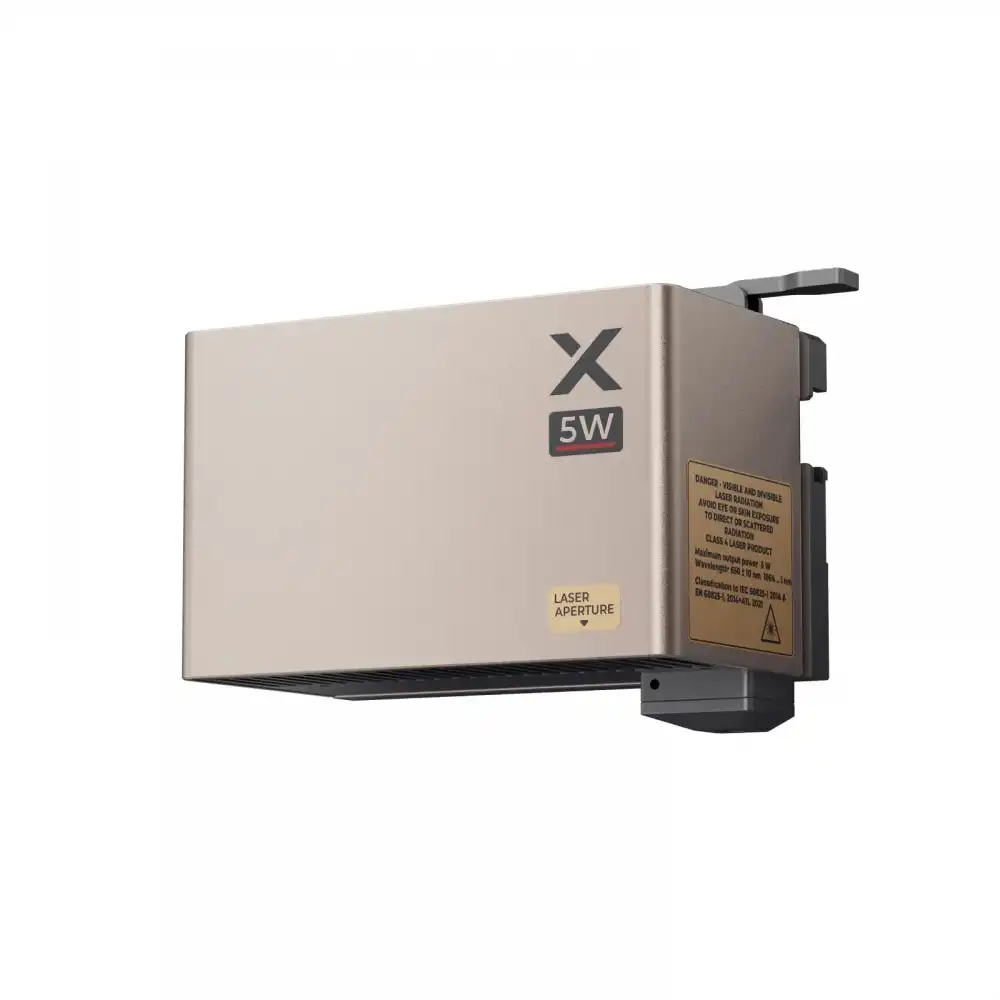

xTool 5W IR Laser Module for P3

  • 5W 1064 nm infrared laser module for the xTool P3.
  • Engraves bare metals such as stainless steel and aluminium, and plastics.
  • 0.03 mm IR laser spot (vs 0.15 mm CO2) for ultra-fine detail.
  • Up to 1000 mm/s on the P3, 650 × 426 mm working area.
RM 3,099.00
Sold out!

    NOW
    MSRP
    NOW

    NOW
    MSRP
    NOW

    xTool 5W IR Laser Module for P3

    xTool Product Demo

    Find a nearby Demo Room to explore features, ask questions, and try before you buy!

    Book Now
    xTool 5W IR Laser Module for P3

    Specifications

    DimensionData
    Wavelength1064nm±1nm
    Power5W
    Pulse Width4ns
    Repetition Rate25~30KHz
    Peak Power49~65KW
    Single Pulse Energy>0.14mJ
    Focal Length49mm
    Beam Waist≥3mm
    Lifetime Requirement8000h
    Laser Head Dimensions & Weight136.5mm*94.5mm*92.5mm 850g
    Working Area650mm*426mm
    Operating Temperature0~35°C
    Storage Temperature-10 ~ 60°C
    Cooling MethodAir Cooling
    Power SupplyHost Power Supply (Powered by Main Unit)
    Package Dimensions & Weight236mm*184mm*156mm 1.5kg

    Important Note:

    • *All product specifications and processing features displayed on this website are based on xTool's internal testing conducted under optimized conditions. Actual performance may vary depending on individual product differences, usage patterns, materials, environmental conditions, and other external factors.
    • *Project photos and videos are for inspiration and to demonstrate creative potential; individual outcomes remain contingent upon user technique, material choice, and environmental factors.
    • *Comparisons are based on publicly available information or internal testing under comparable conditions. Differences in testing methods, configurations, and environments may result in varying outcomes.

    Overview

    xTool 5W IR Laser Module for P3

    Add 1064 nm infrared marking to your P3 for metals and plastics

    Unlock Metal EngravingA 5W 1064 nm module that marks bare metals such as stainless steel and aluminium.

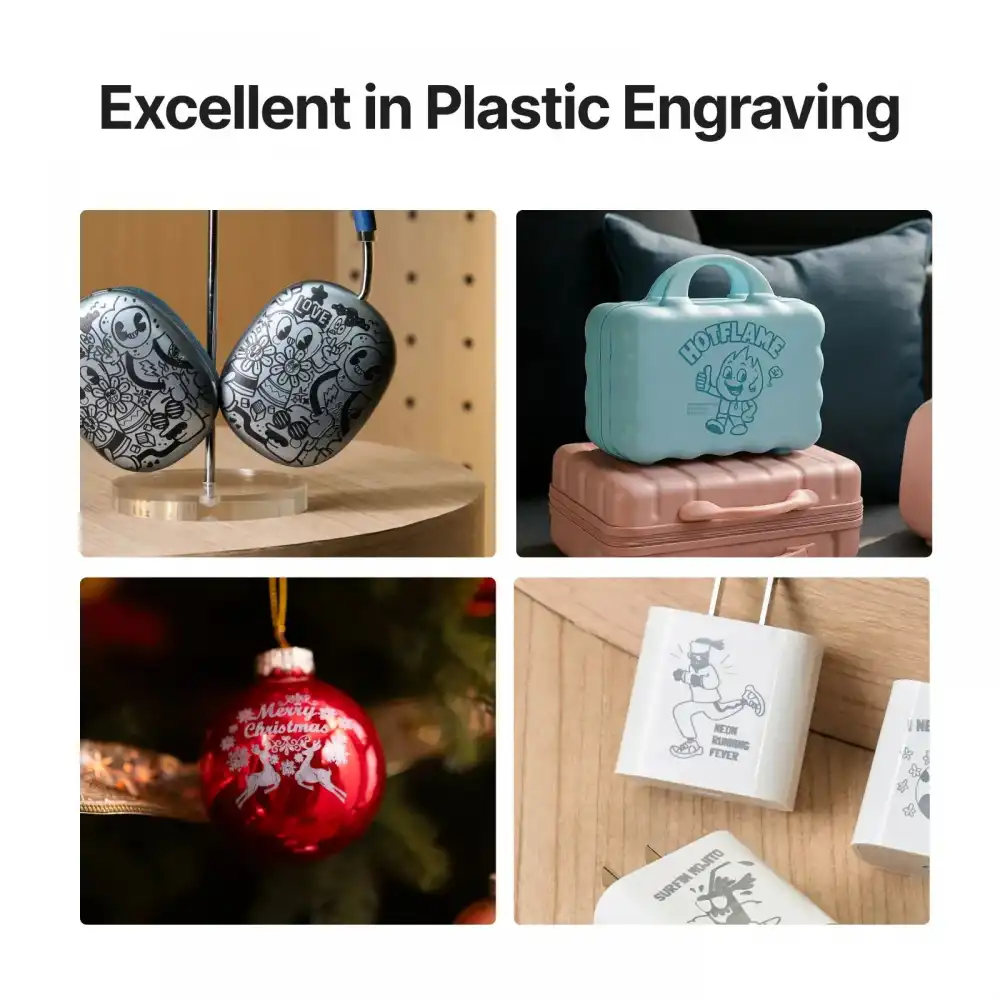

    Great on PlasticsDetailed engraving on plastic items, ornaments and accessories.

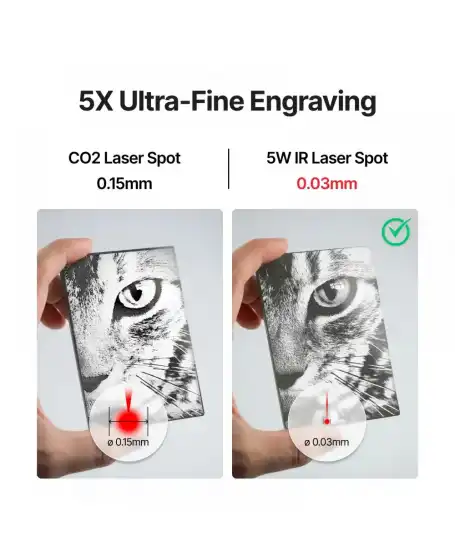

    5× Finer Spot0.03 mm IR spot versus 0.15 mm for the CO2 laser, for ultra-fine detail.

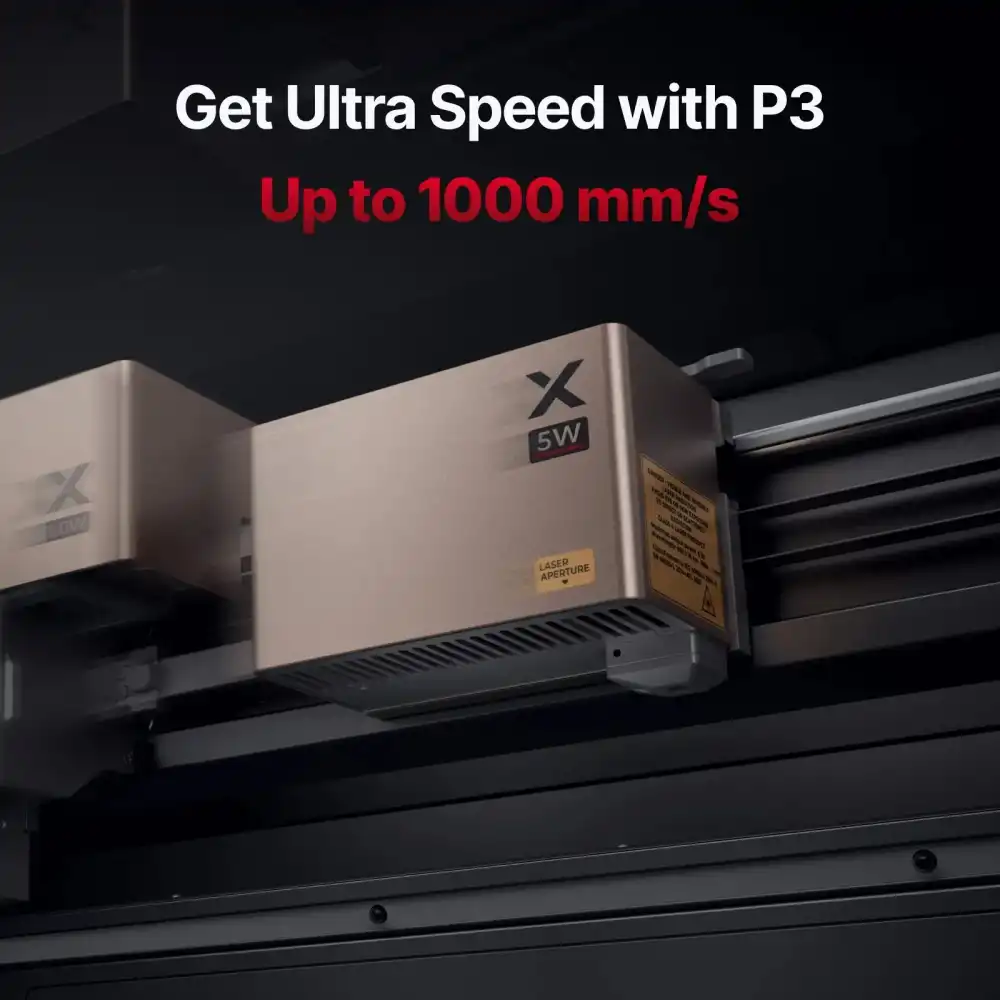

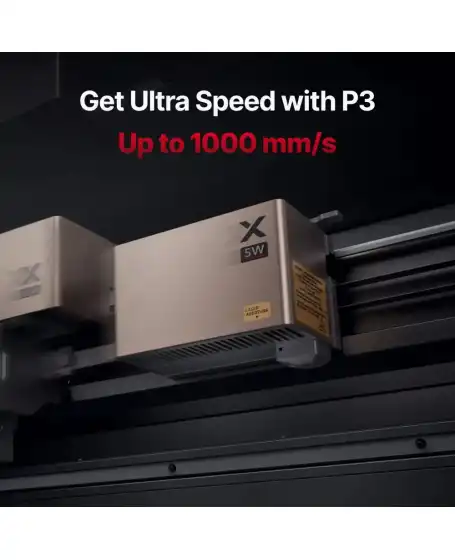

    Fast on P3Up to 1000 mm/s on the P3, powered directly by the main unit.

    Specifications

    Compatible machinexTool P3
    Wavelength1064 nm ± 1 nm
    Power5W
    Pulse width4 ns
    Repetition rate25–30 kHz
    Peak power49–65 kW
    Single pulse energy> 0.14 mJ
    Focal length49 mm
    Beam waist≥ 3 mm
    Lifetime requirement8,000 h
    Working area650 × 426 mm
    Laser head size / weight136.5 × 94.5 × 92.5 mm / 850 g
    CoolingAir cooling
    Power supplyPowered by the main unit
    Operating temperature0–35 °C
    Storage temperature-10 to 60 °C
    Package size / weight236 × 184 × 156 mm / 1.5 kg

    Compatible with

    xTool P3

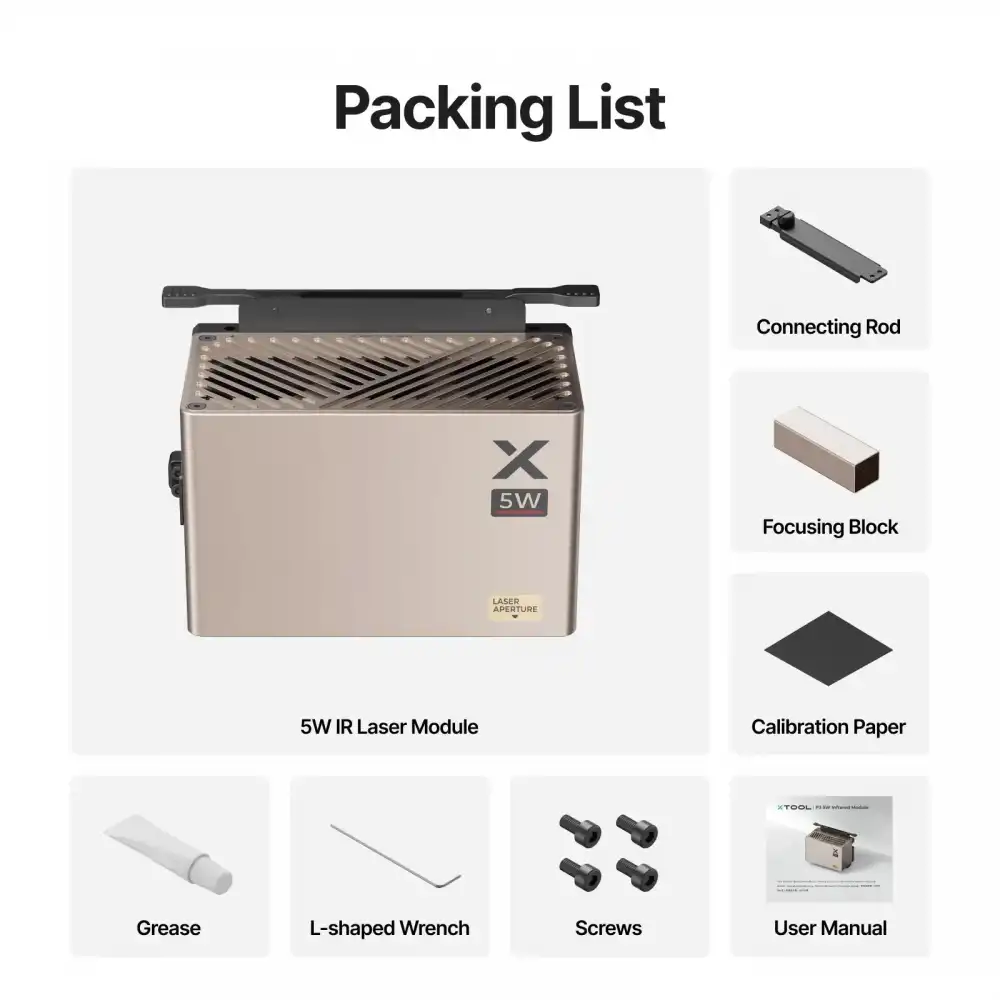

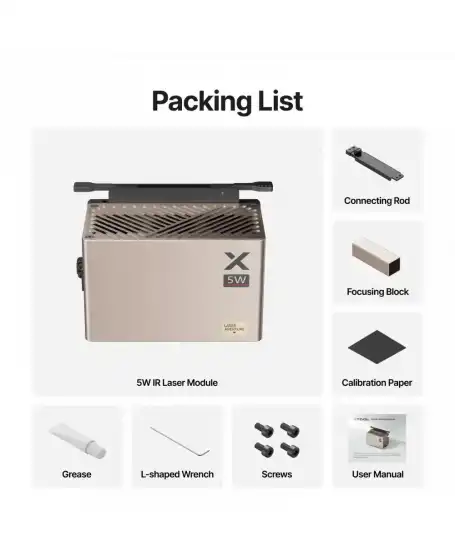

    In the box

    5W IR Laser Module, connecting rod, focusing block, calibration paper, grease, L-shaped wrench, screws, user manual.

    *Specifications are based on xTool’s official data and internal testing under optimised conditions. Actual performance may vary with materials, usage and environment.
